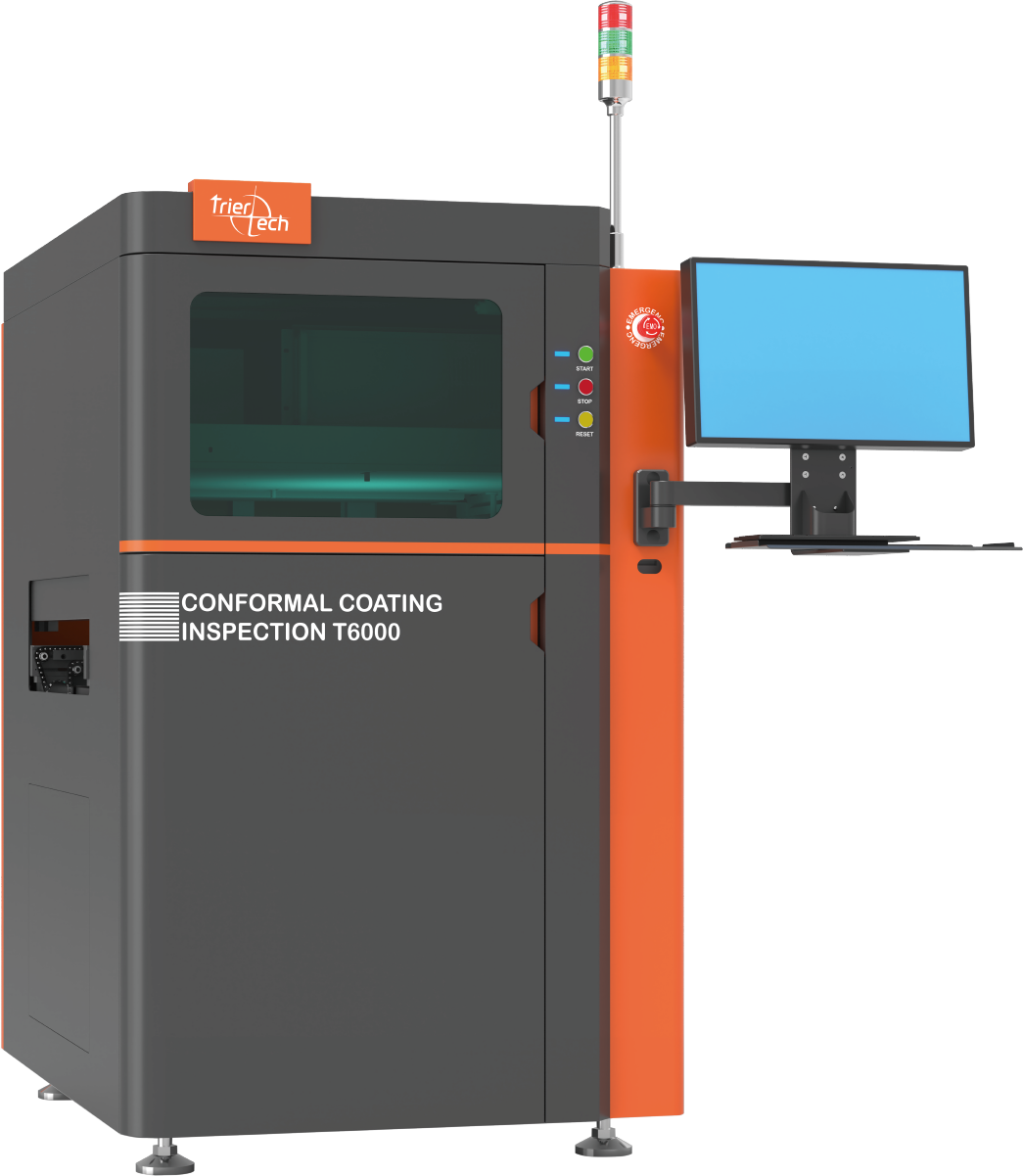

T6000

The Triertech T6000 Series Conformal Coating Inspection AOI offers flexible top, bottom, or simultaneous dual-sided inspection, supporting scan areas up to 300 mm × 400 mm and 420 mm × 530 mm. Engineered with a multi-angle lighting assembly, telecentric lens array, and line-scan optical module, it delivers uniform, high-contrast imaging for maximum inspection accuracy. Unlike conventional single-point thickness gauges, the T6000 Series’ defining advantage lies in its ability to execute full-board coplanarity and complete surface coating thickness scanning—delivering 100% inspection coverage across the entire PCB.
